'67 GT500 fuel pump

Discussion in '1965-1970 Shelby Mustang GT350 & GT500' started by Fast Fords, Oct 19, 2007.

  1. Fast Fords

    Fast Fords Well-Known Member

    Posts:
    69
    Likes Received:
    0
    Joined:
    Apr 26, 2005
    Hi, can someone tell me what the correct fuel pump would be for a '67GT500?Is it a Carter with a canister and what is the number on the flange.Thanks in advance for your help....Greg.

  2. Snakepit

    Snakepit Well-Known Member

    Posts:
    843
    Likes Received:
    12
    Joined:
    Jul 3, 2005
    Location:
    Central Calif
    Its the Carter one with the cannister ;)

    Sorry don't have the Carter number handy

  3. ELJ1st500

    ELJ1st500 Well-Known Member

    Age:
    54
    Posts:
    175
    Likes Received:
    0
    Joined:
    Sep 10, 2004
    Location:
    Colorado
    Jeff,

    Does this also apply to GT 500s equipped with factory A/C and the factory oil cooler? It appears there would be a clearance issue between the fuel filter cannister and the oil cooler lines. Please let us know.

    Thanks,
    Eric

  4. isaak-gt500kr

    isaak-gt500kr Well-Known Member

    Age:
    63
    Posts:
    104
    Likes Received:
    0
    Joined:
    Nov 7, 2005
    Ford part #C0AZ-D Carter #4442 or 4539 '67 428 PI Before 2/1/67
    Ford part #C7AZ-A Carter #4441 w/X mk. '67 428 PI After 2/1/67

    Carter no. will be stamped on pump mounting flange. I do not think these pumps had the filter canister. If my memory serves me right the fuel filter canister was mounted in front of the left valve cover.

    Last edited: Oct 20, 2007
  5. Bob Gaines

    Bob Gaines Well-Known Member

    Posts:
    1,144
    Likes Received:
    37
    Joined:
    Jan 7, 2006
    All of the 1967 Shelby GT500 used the carter pump button top with the canister (marked Autolite not Fomoco). The assembyline and early service pumps had CAR bura TER in the casting. The 67 GT500 had to have the canister pump because the duel four holleys did not have a filter on the carbs . They only had a small pumice screen inside the bowl inlet.The 427 big car line used the fuel canister plumbed into the fuel line conected to a brkt mounted to the driver side head. Also those big cars and 427 Cobras used a AC marked pump and not the carter pump from the factory. There are a few early Mag photos of cars that had the 427 style canister but there was so many other things different it was obvious it was not a production car. Also the 67 and 68 GT500 /KR with factory Air used a special short oil filter to compensate for the extra length the S7MS oil cooler donut used under the standard oil filter adapter creates.

  6. ELJ1st500

    ELJ1st500 Well-Known Member

    Age:
    54
    Posts:
    175
    Likes Received:
    0
    Joined:
    Sep 10, 2004
    Location:
    Colorado
    Bob,

    On a factory A/C car, how were the oil cooler lines positioned/routed in order to clear the cannister style fuel filter on the bottom of the fuel pump? Do you have any pictures you could post that show this? Please let us know.


    Mike Herman, does your car have the correct fuel pump with cannister type filter on the bottom and the correct oil cooler and lines arrangement? If so, could you post a picture or two?

    Thanks,
    Eric

    Last edited: Oct 20, 2007
  7. Bob Gaines

    Bob Gaines Well-Known Member

    Posts:
    1,144
    Likes Received:
    37
    Joined:
    Jan 7, 2006
    I will take some pictures of the oil cooler lines and the special oil filter that are on a car in my collection. It will probably be Monday before I can get them on.

  8. mherman2

    mherman2 Well-Known Member

    Age:
    47
    Posts:
    565
    Likes Received:
    3
    Joined:
    Dec 9, 2005
    Eric,

    I have the earlier version with the pump button and canister. I do have the original oil cooler that factory AC cars had. I am not home until tomorrow but I will take some pictures and post them as well. I imagine Bob can give you great guidance on the line position etc.....

  9. Snakepit

    Snakepit Well-Known Member

    Posts:
    843
    Likes Received:
    12
    Joined:
    Jul 3, 2005
    Location:
    Central Calif

    Did you get this from the Illustrated/Mater Parts Catalog. In general this list replacement parts (parts available at the time of printing that would work) rather than the original parts

  10. isaak-gt500kr

    isaak-gt500kr Well-Known Member

    Age:
    63
    Posts:
    104
    Likes Received:
    0
    Joined:
    Nov 7, 2005

    Unfortunately my brother has my FMC Master Parts cats, he is about 65 miles away unfortunately. I found the pump numbers in a Ford Muscle Parts indentifier book which I have found to be fairly accurate but not always. I did look through a bunch of '67 GT500 pics and found that the canister type pump is correct as previously stated by Mr. Gaines. Sorry about any misinformation. I will continue to research my archives for better information. :blush:

  11. Bob Gaines

    Bob Gaines Well-Known Member

    Posts:
    1,144
    Likes Received:
    37
    Joined:
    Jan 7, 2006

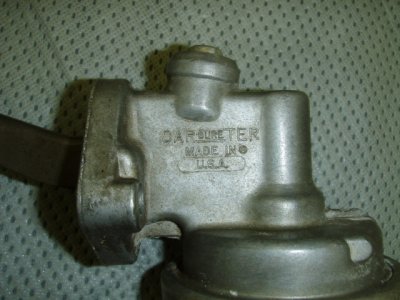

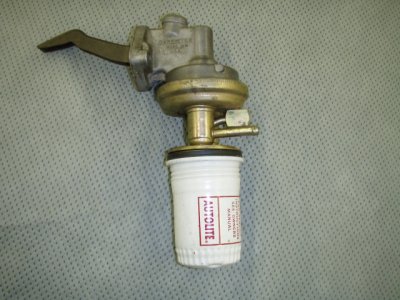

    dusty NOS correct fuel pump with correct autolite canister.


    Attached Files:

  12. Bob Gaines

    Bob Gaines Well-Known Member

    Posts:
    1,144
    Likes Received:
    37
    Joined:
    Jan 7, 2006
    Re: '67 GT500 fuel pump oil cooler line clearence

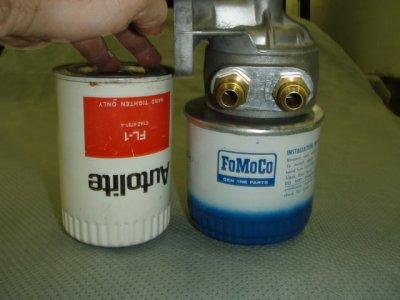

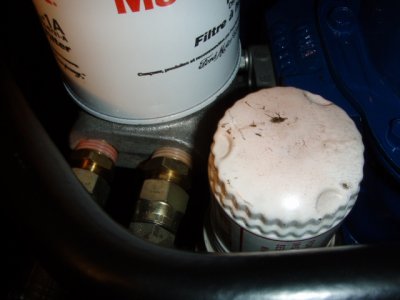

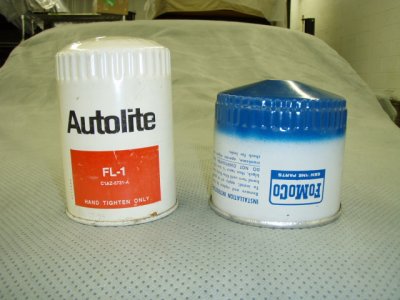

    Eric and all, here is a picture taken from below looking up at fuelpump canister. Notice the oil cooler lines have plenty of clearance from the fuel canister. Next pictures show a comparision between the special 67/68 Shelby GT500 with a/c oil filter vs stock filter. The standard one will work but hangs done much lower. The short thicker filter is the concours correct size. You can see that with the S7MS oil cooler donut added to the stock oil filter adapter the shorter filter compensates for the added length. Since it is thicker it holds the same volume as the stock filter. On a concours car I would paint it engine color to represent how it would look from the assemblyline. If you look in the master parts book it will give you the filter number .


    Attached Files:

  13. ELJ1st500

    ELJ1st500 Well-Known Member

    Age:
    54
    Posts:
    175
    Likes Received:
    0
    Joined:
    Sep 10, 2004
    Location:
    Colorado
    Bob,

    Thanks for posting the pictures. So, if I was looking down at the driver's side of the engine block at the fuel pump and the oil filter adapter and oil cooler lines; the oil cooler donut is positioned so the lines are angled out slightly towards the driver's side of the car in order for them to clear the fuel filter cannister. Did I describe that correctly? Please let me know.

    Thanks,
    Eric

  14. mherman2

    mherman2 Well-Known Member

    Age:
    47
    Posts:
    565
    Likes Received:
    3
    Joined:
    Dec 9, 2005
    Re: '67 GT500 fuel pump oil cooler line clearence

    Bob:

    So this cannister I have is not correct for an AC car or it is?

    http://picasaweb.google.com/mike.herman/67GT500/photo#5073198038345229362

  15. Bob Gaines

    Bob Gaines Well-Known Member

    Posts:
    1,144
    Likes Received:
    37
    Joined:
    Jan 7, 2006
    Yes to Eric's question. Mike, I assume you mean oil filter instead of fuel filter canister. The short fat one is the one that is technically correct for a 67 or 68 GT500/KR air car for the reasons I explained before.

  16. Dkey

    Dkey New Member

    Posts:
    1
    Likes Received:
    0
    Joined:
    Apr 27, 2014
    What is the correct model number of the Carter fuel pump for a 428 PI 1967 GT500?

  17. tyfaciane

    tyfaciane New Member

    Posts:
    3
    Likes Received:
    0
    Joined:
    Feb 21, 2011
    What is the correct model number of the Carter fuel pump for a 428 PI 1967 GT500?

  18. Bob Gaines

    Bob Gaines Well-Known Member

    Posts:
    1,144
    Likes Received:
    37
    Joined:
    Jan 7, 2006
    The Shelby build sheets call for a C6OE 9350 C to be used on the 67 GT500.
